AUTOMATIC COPY TURNING

Auto Programmed Cycle Tracer

Auto Programmed Cycle Tracer System includes Single Axis Tracer with Hydraulic Control valves. Dual Delivery Power Pack. Control Panel, feed cylinder to move saddle longitudinally and limit switches. System is suitably designed to get up to six cut automatic cycles of Single Axis Tracer. System is very much suitable where limited dependence on operator required. Operator is only required to load job, press start button and unload the job at the end of cycle.

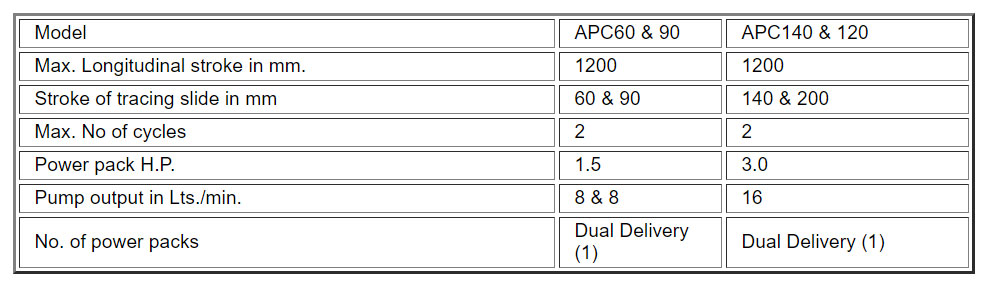

Specifications: -

• Model
• Max. Longitudinal stroke in mm.
• Stroke of tracing slide in mm.
• Max. No of cycles
• Power pack H.P.
• Pump output in Lts./min.
• No. of power packs.

!
